Gaussian Reference – Edit

Updated on 24 Feb 2026

Gaussian's Logo

Gaussian 26W Reference

The Job Edit Window

This window is used to create and edit Gaussian input files. It has two titles: Job Entry, when used to create new input, and Existing File Job Edit, when used to modify an existing input file. Note that new input and changes to existing input files are stored in memory as they are made—and thus will be used when job execution begins—but they must be explicitly saved to disk.

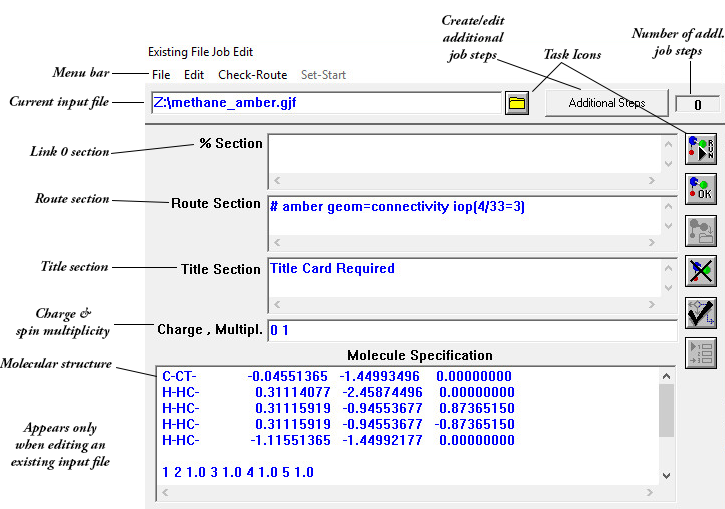

Job Edit Window

The File Menu



The File menu allows you to load and save Gaussian input files. Some of its options have equivalent icons (described later in this section).

Load

Load an existing input file (extension .GJF), replacing any current input. If the filename field is filled in, this file will be loaded. If it is blank, then you will be prompted for the file to load. The loaded file replaces any current input (after prompting for needed saves).

If you select the Load option without changing the contents of the filename field, then the current input will revert to the last-saved form on disk (provided that you answer No to the save prompt).

Save Job

Save the current input to its original file (you will be prompted for a filename if it is newly created input).

Save Job As…

Save the current input to a file that you specify.

External Editor

Invoke the external editor on the current input. The external editor is specified via the preferences.

Abandon Data

Exit from this window, discarding all input and changes.

Exit

Return to the Job Processing window. Current input is retained but is not automatically saved.

Exit & Run

Return to the Job Processing window and begin executing the current input (not automatically saved to disk).

The Edit Menu



The Edit menu includes the standard Windows Edit menu options Undo, Cut, Copy, Paste, and Delete. It also has this additional option:

Clear Form

Erase all information in all sections of the window. No warning is given about any unsaved changes. You can create a new input file from this form by selecting Clear Form, entering the desired input, and then saving it.

The Check-Route Option



This item runs the Check Route utility on the current input (described later in this document). There is an equivalent icon for this option (described later).

The Set-Start Option



This option enables you to set the starting job step for this input file (additional job steps are discussed later in this section). The default is the main (first) step:

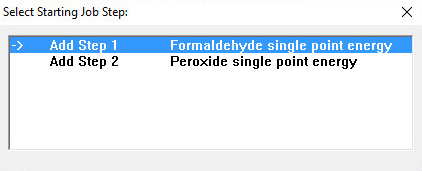

Select Job Step

Select the starting step by double clicking on the desired step. Exit from the window by choosing Close from the window’s System menu (reached via the close bar in its upper left corner). There is an equivalent icon for this option (described later).

Icons



The following icons are available in the Job Edit window (the equivalent menu item is in parentheses):

Exit & Run Return to main menu and begin executing job (File →Exit & Run).

ExitReturn to the main menu (File → Exit ).

Save JobSave all current input to disk (File →Save Job).

AbandonDiscard all input and return to main menu (File →Abandon Data).

Check RouteRun the Check Route utility (Check-Route).

Set StartSpecify the starting job step (Set-Start).

LoadLoad an input file, always asking for the filename, replacing any current input (after prompting for any needed saves). Only present when editing an existing file (File → Load).

The Additional Steps Button



This button takes you to the Additional Job Steps window, described in the next section. The display field to its right indicates the number of additional job steps within this job.

The Additional Job Steps Window

The Additional Job Steps window is used to create and edit multicomponent Gaussian jobs. Note that no file saving takes place from this window; saves must be made from the Job Edit window.

Additional Job Steps

Initial Window Appearance



When you press the Additional Steps button for an input file with only a single job step, the Additional Job Steps window consists solely of its menu bar:

Adding steps

The various input areas are not visible until you create a new step by selecting Add Step from the Stepmenu.

The Step Menu



The Step menu is used to create, remove, and rearrange the order of job steps.

Add Step

Create a new job step after the current one. The contents of the % Section, Title Section, and Charge & Multipl. areas from the main job are automatically copied to the new step. They may be edited as desired as the additional areas are filled in.

Delete Step

Remove the current step from the job.

Reorder

Change the order of the job steps using the Re-Ordering Data window (described in a separate section later in this document).

Load From File

Replace the current step with the job stored in an external file (you will be prompted for the filename). If the file contains more than one job step itself and the current step is the last job step, then all steps from the file will be loaded in their current order.

If the file contains multiple job steps and the current step is not the last step in the job, then only the first step from the file will be loaded, as the current step, and an error message will be displayed.

Exit

Return to the Job Edit window. There is an equivalent icon for this menu item (described later in this section).

The Edit Menu



The Edit menu contains the standard items: Undo, Cut, Copy, Paste, and Delete.

The View Menu



The View menu allows you to move among the additional jobs steps within the current job. Its items also have equivalent icons (described later in this section).

Next Step

Move to the next step (higher numbered) in the job.

Prev Step

Move to the previous step in this job.

Choose Step

Move to the job step number that you specify.

The Check-Route Item



This item runs the Check Route facility on the current input step (described in a separate section later in this document).

Icons



The following icons appear in the Additional Job Steps window (the equivalent menu item is in parentheses):

Next StepMove to the next job step (View: Next Step).

Previous StepMove to the previous job step (View: Prev Step).

Choose StepMove to a specified step number (View: Choose Step).

Check RouteRun the Check Route utility (Check-Route).

ExitReturn to the Job Edit window (Step: Exit).

The Check Route Facility

The Check Route facility verifies the route section of the current input (or additional job step if run from the Additional Job Steps window). It displays a window containing the route section, the corresponding link map, and any error messages. This features corresponds to the testrt utility provided with other Gaussian versions.

Route Facility

The absence of any error message indicates a valid route section (although Check Route cannot determine whether it is the one you intend or not). You may exit from this window by pressing the Done button when you have finished examining the Check Route output. Consult the GaussianUser’s Reference for more information on this facility.
